Easy

Machine Type:

Spray coating

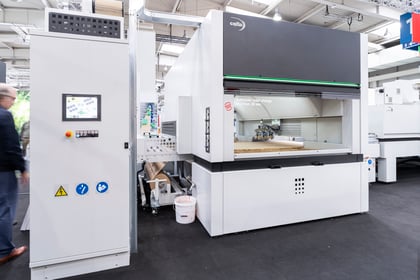

Easy is the easy-to-use two-arm oscillating spray machine developed to provide finishes of the very highest quality. It can provide the basis for complex systems, especially to meet high-volume production needs.

01 Focus On
02 Description
03 Characteristics
04 Materials
05 Applications

Order spare parts

Focus On

EASY (CFB)

Patented recovery system. Paint is recovered by a counter-turning roller, while the rest of the system ensures perfect belt cleaning. Solvent consumption and end-of-session cleaning times are minimised. The FLEX version (with belt recovery) has been developed for users who paint small batches with frequent colour changes.

EASY P (Paper)

If you want to make it simple, change paint as often as you need to, and lose no time setting up the cleaning trolley and cleaning at the end of the shift, EASY PAPER is the answer. The machine runs with belt feed, and the underlying vacuum pulls a roll of clean paper through the machine, ensuring a clean surface for the pieces and a chance to reduce solvent consumption. This also reduces maintenance requirements as well as cleaning operations at the beginning and end of each shift.

Description

Easy is a two-arm oscillating spray machine designed for medium-large production volumes.

It is the ideal solution for any gloss or matt finish.

Characteristics

High-strength carbon fibre belt (CFB) with automatic centring device
Patented overspray recovery system
High transfer-efficiency
Very flexible/fast during colour changes
Patented paper roll loading/unloading device (EASY P)

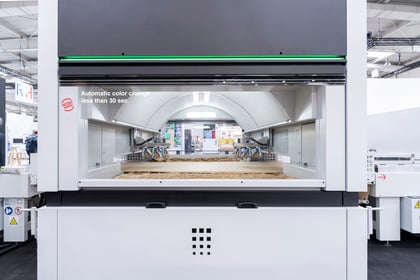

The Fast Color Switch system (FCS) would reduce downtime by at least 30 minutes/ day or between 2 and 3 hours weekly. Patent pending

Details

01 Spraying arms

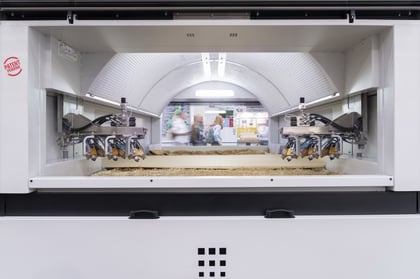

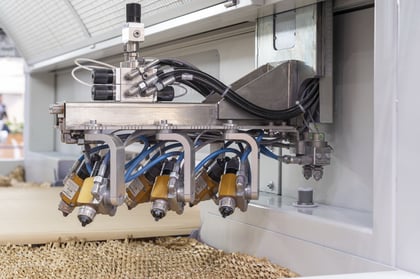

Oscillation of the two spray-gun arms is powered by a brushless motor and positive drive belts, with separate ways and supports. Quick-fitting interchangeable arms available as an optional.

02 Reading barrier

Thanks to its reading barrier, the machine precisely scans the shape and size of incoming pieces to optimise spraying and avoid wasting paint.

03 Conveyor system

EASY (CFB)

The system is equipped with a carbon fibre conveyor belt (CFB) to ensure perfect piece adherence to the conveyor surface, immaculate edge coating quality and no overspray in the undersides of pieces. The belt also features an automatic centring device to guarantee correct conveyor belt positioning on the high precision carriage. This belt simplifies overspray recovery while also minimising solvent use and cleaning and maintenance procedures.

EASY P

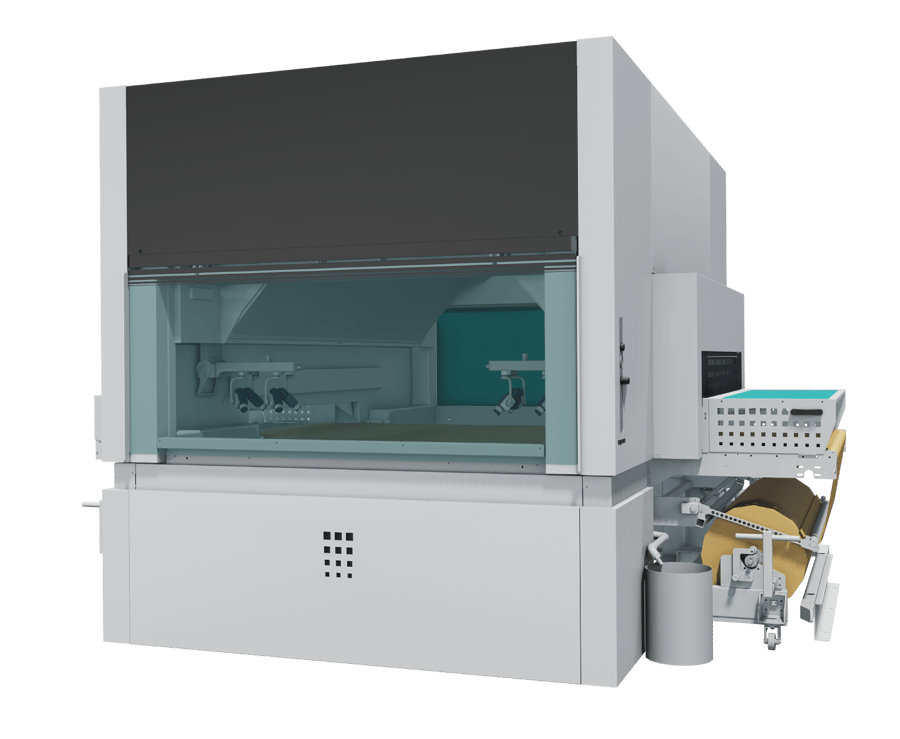

The system is equipped with two independent paper roll loading/unloading devices at infeed/outfeed of the machine. Machine feeding is ensured by the underlying vacuum, that feeds a very thin paper roll at the correct speed. This helps to reduce running costs, both when buying new paper and also when you need to dispose of the used paper. This system will cut solvent/cleaning costs compared the cleaning trolley of the belt version, making it friendlier for the environment. The paper roll loading/unloading devices enabling easy handling are patented.

04 Overspray filtration

The filtering system, with dry or water filters, combines with an "Airsphere" air diffusion Plenum (Cefla patented), an innovative method for controlling the air flow inside the machine for maximised spraying quality and higher transfer-efficiency.

05 Configurations

OVERSPRAY FILTRATION: dry or water
